PRODUCTS

Central Carolina Scale sells and services Rice Lake Survivor CW 90X Check Weighing Scales

SURVIVOR® CW-90X Over/Under Checkweigher

For heavy washdown environments and HACCP requirements, choose Rice Lake's CW-90X. The over/under CW-90X scale features hermetically sealed load cell, 304 stainless steel materials and has an IP 69K rating to survive daily sanitary washdowns.

The CW-90X also features the toughest keypad available in the industry today. The unique piezo keypad has no moving part, is made to withstand sharp knife point contacts and is resistant to all types of contaminates and liquids.

Standard Features
• Piezo keypad consisting of ZERO, UNITS, PRINT, TARE, OVER,
UNDER, ID, TARGET, ENTER, MENU, POWER
• 304 stainless steel, IP69K rated
• Prevent breather vent
• Storage for up to 50 ID's
• Unit of measure: kg, gm, lb, oz, lb/oz
• High-Intensity LED display
• Battery backed time and date
• Two full duplex serial ports
• Configurable print formats
• Audit trail tracking
• Optional comunications: Ethernet, USB or Fiber Optic
• Four configurable Digital I/O
• Reflash memory to upgrade firmware

Scale:
• IP69, stainless steel hermetically-sealed load cell
• 304 stainless steel
• Five point overload protection

Literature (pdf file)

IP69 rating is designed to seal out moisture and contaminants.

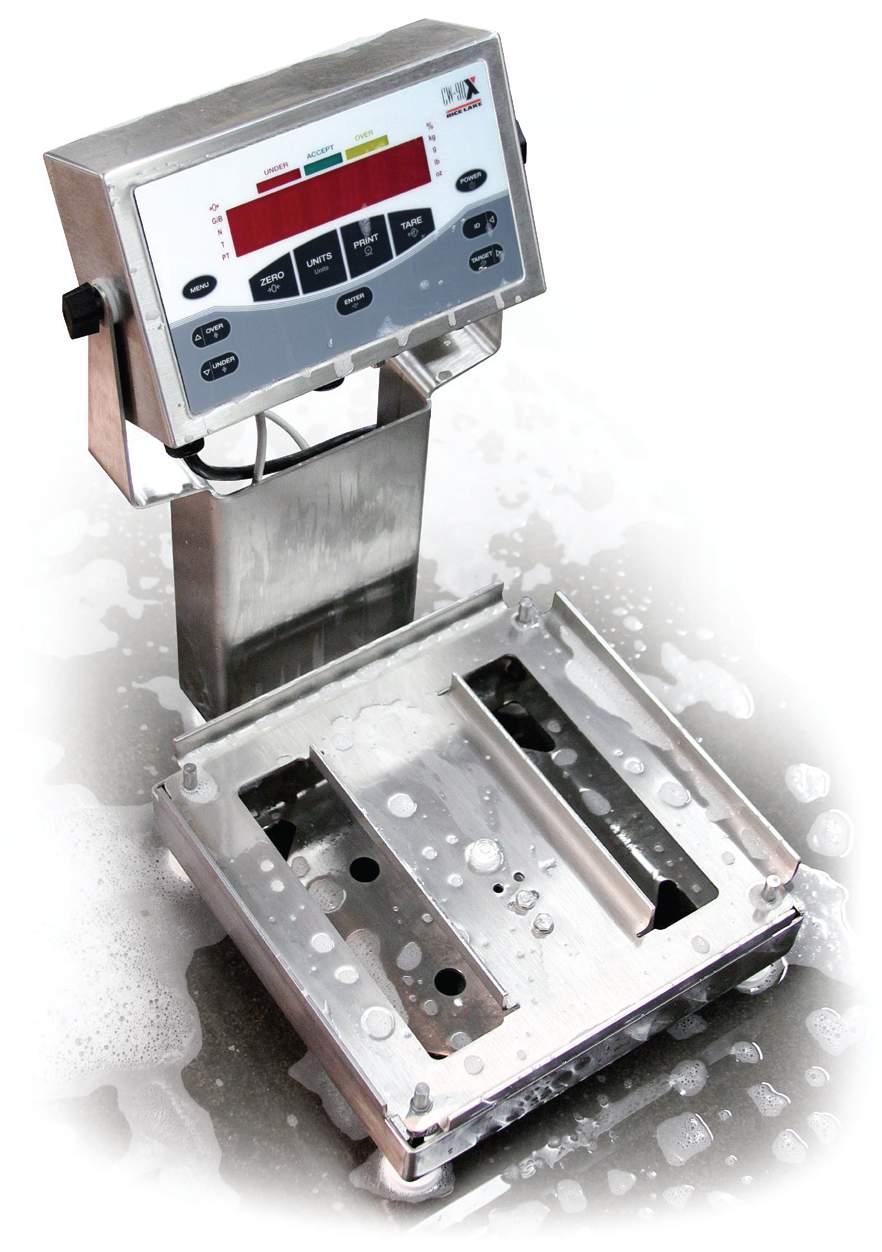

Washdown Safe CW90X with top platter off

Status annunciators:
Designators for %, kg, gm, lb, oz, center of
zero, G/B, N, T, PT, neg, motion

Operating temperature:
Legal: 14ºF to 104ºF
(-10ºC to +40ºC)

Rating/Material:
IP69K, stainless steel

load cell:
IP69, stainless steel hermetically sealed

approvals:
NTEP: CC # 08-092
Measurement Canada (pending)
OIML (pending)
UL and CUL listed (pending)
CE marked (pending)
NSF

warranty:
Three-year limited warranty

Part # ......... Capacity x Readability ....................Platform Dimensions ........ Height
(115 VAC)
105963.......... 5 lb x 0.001 lb (2.5 x 0.0005 kg) 80 x 0.02 oz.......... 10 in x 10 in x 4.25 in.........12 in
105965.......... 10 lb x 0.002 lb ( 5 x 0.001 kg) 160 x 0.05 oz.......... 10 in x 10 in x 4.25 in.........12 in
105966.......... 25 lb x 0.005 lb ( 10 0.005 kg) 400 x 0.1 oz............. 10 in x 10 in x 4.25 in.........12 in
105967.......... 25 lb x 0.005 lb ( 10 0.005 kg) 400 x 0.1 oz............. 12 in x 12 in x 4.25 in.........12 in
105968.......... 50 lb x 0.01 lb (25 x 0.005 kg) 800 x 0.2 oz............. 12 in x 12 in x 4.25 in.........12 in
105969.......... 100 lb x 0.02 lb (50 x 0.01 kg) 1600 x 0.5 oz........... 12 in x 12 in x 4.25 in.........12 in

(230 VAC)
106129.......... 5 lb x 0.001 lb (2.5 x 0.0005 kg) 80 x 0.02 oz.......... 10 in x 10 in x 4.25 in.........12 in
106130.......... 10 lb x 0.002 lb ( 5 x 0.001 kg) 160 x 0.05 oz.......... 10 in x 10 in x 4.25 in.........12 in
106131.......... 25 lb x 0.005 lb ( 10 0.005 kg) 400 x 0.1 oz............. 10 in x 10 in x 4.25 in.........12 in
106132.......... 25 lb x 0.005 lb ( 10 0.005 kg) 400 x 0.1 oz............. 12 in x 12 in x 4.25 in.........12 in
106133.......... 50 lb x 0.01 lb (25 x 0.005 kg) 800 x 0.2 oz............. 12 in x 12 in x 4.25 in.........12 in
106134.......... 100 lb x 0.02 lb (50 x 0.01 kg) 1600 x 0.5 oz........... 12 in x 12 in x 4.25 in.........12 in

Options/Accessories
77142............ Ethernet TCP/IP
108671.......... Wireless LAN card WiFi 802.11 A/B
93245............ USB Port (PC connection only)
95357............ USB cable, Type A to mini-B, 1 meter
96736............ Fiber optic board
78026............ Fiber optic, duplex cable 100 ft
80892............ Fiber optic cutter
