Central Carolina Scale sells and services Doran Model 4200 Checkweigher Scales

Doran Model 2200CW Checkweigh Scale

Why settle for less - when you can have a checkweighing scale that has it all! With a built-in 250 product database, versatile communications, powerful control options, and outstanding PC support software, the 2200CW has it all in an easy to use, technologically advanced and extremely rugged package.

doran 2200CW
Brochure (pdf file)

Store 250 Product ID's
The internal database can store the checkweigh tolerances, tare weights, six digit product ID's, accumulation totals, and counter totals. Store, recall, and weigh with the 2200CW built-in database! This internal database will store up to 250 Checkweigh Tolerances, Tare Weights, Accumulation and Counter totals and a description field by a six digit Product ID. Recalling a product from the database is as simple as pressing the PROD button and entering the product ID.

Setup the 2200CW in Minutes
Simply enter the product ID, description field, checkweigh parameters, and tare weights into the optional CheckWay PC software and then select the scale or scales to upload or download from.
The data can be password protected to ensure that your products are checkweighed properly every time. It’s never been easier to upload, download, and maintain checkweigh tolerances than it is now with CheckWay. This optional software is designed for use with the 2200CW Checkweigher's internal database through the standard or optional communication choices. Simply enter the product ID, Description field, Checkweigh parameters, and Tare weights and then select the scale or scales to upload to or download from. Scale setup files are saved on the PC, so configuring several scales with identical data is easy and accurate. Programming hundreds of product parameters takes minutes, instead of hours.

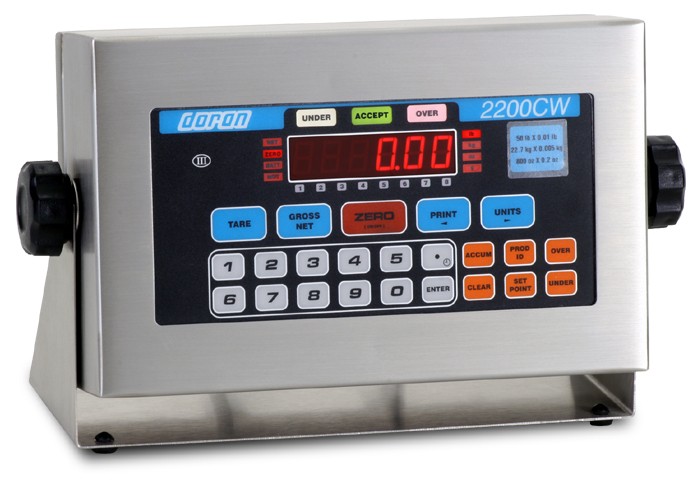

2200 CW check weigh digital indicator for scales

Recall Data Quickly
Handwritten production records to track weighments or accumulated weight are a thing of the past. The counter memory stores the number of weighments. Recalling the accumulated weight at the end of the shift is as simple as pushing a button.

Versatile Communication Options
Connect with any device or computer using the two standard RS-232 ports, or with the optional Wired Ethernet, Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485 or Fiber Optic. Communicate with flexible and user definable data strings to include standard scale information, product ID, and product description. This allows for an easy interface with barcode printers, data collection systems or other remote devices.

Guardian Harsh Environment Protection System
Engineered to thrive in the harshest of working environments, the Model 2200CW features the Guardian Harsh Environment Protection System. All the components of this system act as your defense against the damaging effects of shock, water, abuse, and other environmental factors that can cause costly repairs and production downtime.

1000% Overload Base
No...that's not a typo! Our unique "Quad-Spring" design protects the sensitive load cell from shock and overload damage. Protected to a maximum of 10 times the base load rating sets the new industry standard - a feature only available from Doran. Take a "peek under the hood" to see what's inside our DXL scale base.

CASE STUDY: Mushroom Grower Increases Production Output by 5,000 lbs a Day Using Doran Checkweighers and Data Collection Software





Standard Features
  • Store, recall, and weigh with the built-in 250 product database. The internal database will store up to 250 checkweigh tolerances, tare weights, accumulator and counter totals and a description field by a six digit Product ID.
  • Adding new products or maintaining existing products are quickly accomplished through the keypad or by using Doran's innovative CheckWay scale configuration software.
  • The easy to use full function keypad allows for simple entry of digital tare, time and date, accumulator, eight product IDs, setpoint outputs, grade values, and over, under, and accept values.
  • Standard software features such as programmable data communication, product grading, peak hold, multiple ID numbers, accumulator, and counter, give you the power to effectively monitor your manufacturing process.
  • Connect, control, and communicate to any device or computer with the two standard RS-232 ports, eight standard outputs, two standard inputs, or a wide range of communication options.
  • Connect with our wired Ethernet, Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485, or Fiber Optic options.
  • Compatible with Doran's Excelerator data collection software.
  • Displays in lb, kg, g, oz, or lb&oz
  • NTEP Certified
  • 2 Year Limited Mfg. Warranty

Specifications

Capacities: 5 lb (2.3 kg) to
200 lb (91 kg)
Platform: 10" x 10", 12" x 12" or 15" x 15"
Enclosure: 10" w x 6" h x 3" d
Power: 115 VAC 50/60Hz
(230 VAC or Internal Rechargeable Battery Optional)
NTEP: nmax=5000d.
Construction: NEMA 4X / IP69K
304 Stainless Steel (16 Gauge)

Options

excel series
Features and Options

Communications Interface

  • Programmable, Bi-directional RS-232 Interface
  • Optional Interfaces: USB 2.0, RS-485, 4-20mA, Fiber Optic, Washdown Ethernet (Wired or Wireless - 802.11b), User definable data output

Optional Setpoints

  • Up to 8 setpoints are available for use in process control, Accept/Reject, 4 Internal Relays or 8 Digital Outputs

Advanced Features



Model

Cap (lbs)

Cap (kg)

Cap (oz)

Platform Size
22002CW
2 x .0005
0.9 x .2g
32 x .01

10" x 10"

22005CW
5 x .001
2.3 x .5g
80 x .02

22010CW

10 x .002

4.5 x 1g

160 x .05

22025CW

25 x .005

11.3 x 2g

400 x .1

22050CW

50 x .01

22.7 x 5g

800 x .2


22050CW/12

50 x .01

22.7 x 5g

800 x .2

12" x 12"

22100CW/12

100 x .02

45 x 10g

1600 x .5

22050CW/15

50 x .01

22.7 x 5g

800 x .2
15" x 15"
22100CW/15

100 x .02

45 x 10g

1600 x .5
22200CW/15

200 x .05

91 x 20g

3200 x 1





Call (919) 776-7737 for more info or to place an order
